Product Details:

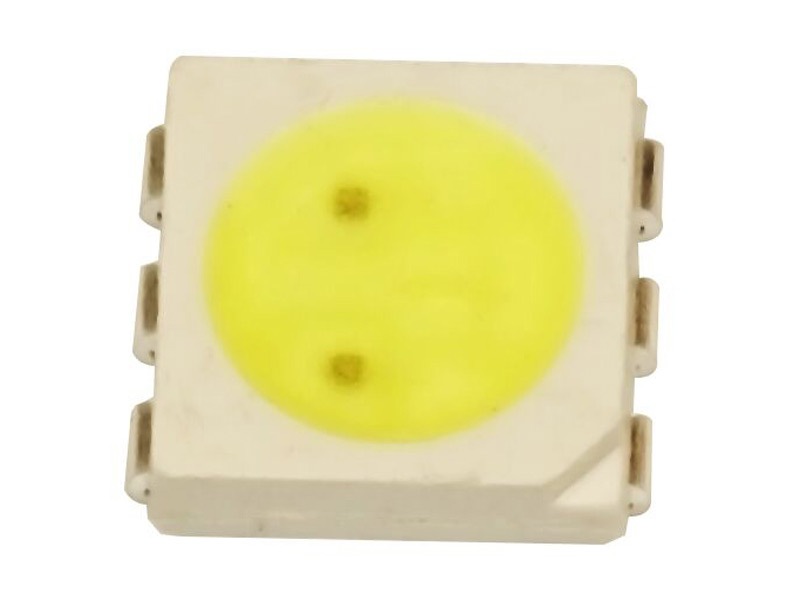

Product Name:5050 SMD led diode
Model Number:MY-SMD5050-0.2WW
Power:0.2W 0.5W 1W
Voltage:3.0-3.2V/6.0-6.4V
Current:60MA/150MA/300MA
Color Rendering Index:Ra>80/RA>90/RA=97
Payment & Shipping Terms:
Minimum Order Quantity:Vacuum packaging 4Kpcs/reel
Chip brand:Bridgelux/Epistar/San’an
Delivery Time:5-7 working days
Payment Terms:T/T, Paypal,Western Union, MoneyGram,Xtransfer
| Color | Dominant Wavelength (nm)(k) | Luminous Intensity (mcd)(lm) | Viewing Angle 50% | Forward Current (mA) |
Forward voltage (V) |
Power (W) |
| Blue | 460-470nm | 150mcd | 120° | 20mA | 2.8-3.0V | 0.06W |
| Luminous Green | 510-530nm | 200mcd | 120° | 20mA | 2.8-3.0V | 0.06W |
| Green | 570-575nm | 300mcd | 120° | 20mA | 2.0-2.2V | 0.04W |
| Yellow | 590-598nm | 150mcd | 120° | 20mA | 2.0-2.2V | 0.04W |
| Orange | 600-610nm | 150mcd | 120° | 20mA | 2.0-2.2V | 0.04W |
| Red | 620-630nm | 200mcd | 120° | 20mA | 2.0-2.2V | 0.04W |
| White | 6000-7000K | 800mcd | 120° | 20mA | 2.8-3.0V | 0.06W |
| Red+Blue | 460-470nm | 150mcd/200mcd | 120° | 40mA | 2.0-2.2V/2.8-3.0V | 0.1W |
| Red+Green | 460-575nm | 150mcd/300mcd | 120° | 40mA | 2.0-2.2V/2.8-3.0V | 0.1W |
| RGB | 460-575nm | 150mcd/300mcd | 120° | 60mA | 2.0-2.2V/2.8-3.0V | 0.18W |
| Cold White | 9000K- | 22-26lm | 120° | 60mA | 2.8-3.2V | 0.25W |
| Warm White | 2500-3500K | 22-26lm | 120° | 60mA | 2.8-3.2V | 0.25W |

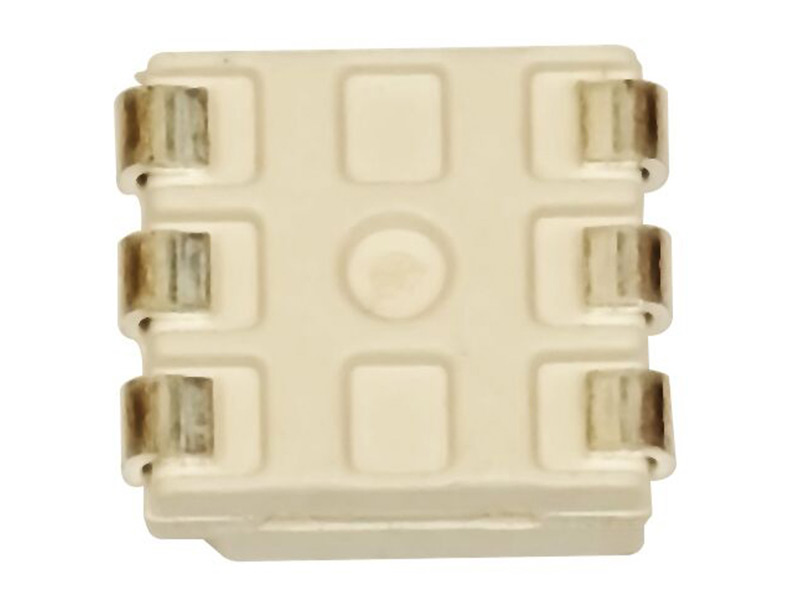

■ Package Size：5.0 (L) × 5.0(W) × 1.85 (T) mm
■ Silicone Packed
■ Suitable for different working environment
■ Super long lifetime：40000HRs
■ Anti UV
■ White colors are available in red、orange、blue、green

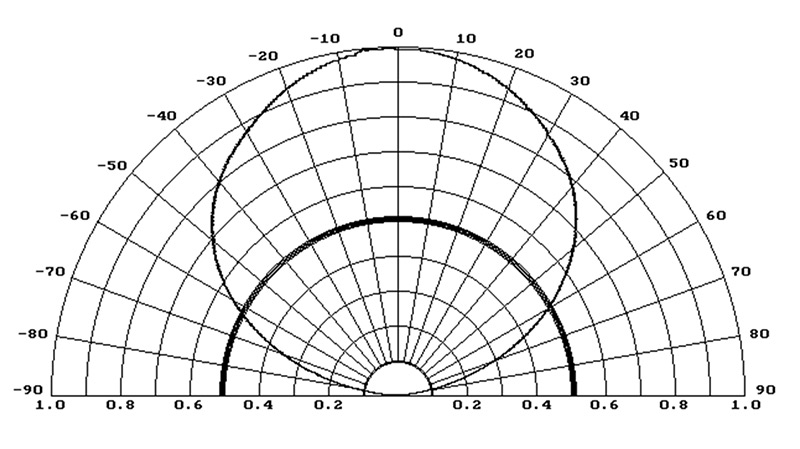

■ Wide viewing angle (2θ1/2=120°)
■Indoor lighting:
Fluorescent lamp, tube, bulb etc.
■ Commercial illumination and displays:
Advertising words, light box
■ LCD Backlighting (including LED TV )
■ Decorative lighting: light strip
■ Automotive interior auxiliary lighting: reading lamp
■ Mobile flashlights
■ Luminaries lighting source: Cabinet light, corridor light
Remark: PartⅠis our featured product，PartⅡ is the product that is available to provide.
Note: The tolerances unless mentioned is ±0.01 mm.
| Parameter | Symbol | Rating | Unit |
| Reverse Voltage | VR | 5 | V |
| Forward Current per LED | IF | 25 | mA |
| Operating Temperature | Topr | -20 ～ +80 | ℃ |
| Storage Temperature | Tstg | -20 ～ +80 | ℃ |
| Soldering Temperature | Tsol | 260(for 5 seconds) | ℃ |
| Power Dissipation | Pd | 250 | mW |
|
Peak Forward Current
|
IFP | 300 | mA |
| Parameter | Symbol | Min. | Typ. | Max. | Unit | Condition |
| Viewing Angle | 2θ1/2 | ----- | 120 | ------ | deg | If=60mA |
| Reverse Current | IR | ----- | ----- | 50 | μA | VR=5V |
Notes:
Tolerance of Luminous Intensity is ±15%.
Tolerance of Forward Voltage is ±0.1V.

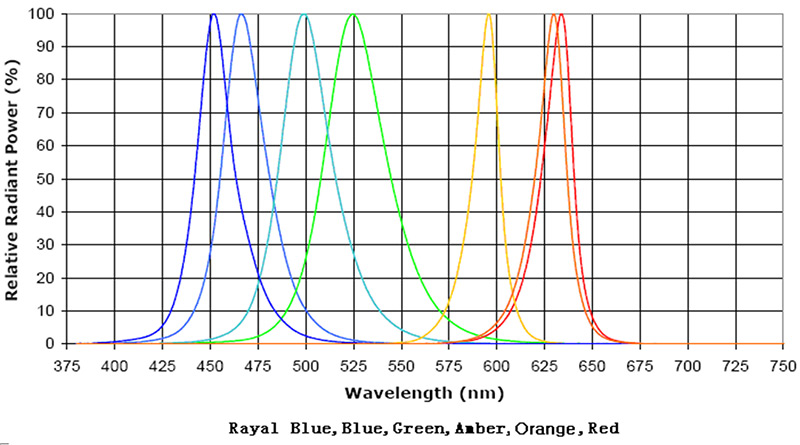

| Color |
Dominant wavelength（nm） λD@ 60mA |
Forward Voltage(V) Vf@ 60mA |
Luminous Intensity(mcd) IV@ 60mA |
Part Number | ||||
| Min. | Max. | Min. | Max. | Group | Min. | Typ. | ||
| White | 2000k | 7000k | 2.9 | 3.5 | B1 | 18LM | 26LM | MY-5050W-XX |
| Royal Blue | 455 | 465 | 2.9 | 3.5 | C1 | 450 | 600 | MY-5050RB-XX |
| Blue | 465 | 475 | 2.9 | 3.5 | C1 | 450 | 600 | MY-5050B-XX |
| Green | 515 | 535 | 2.9 | 3.5 | F1 | 1500 | 2000 | MY-5050G-XX |
| Amber | 585 | 595 | 1.8 | 2.4 | D2 | 900 | 1200 | MY-5050A-XX |
| Orange | 600 | 615 | 1.8 | 2.4 | D2 | 900 | 1200 | MY-5050O-XX |
| Red | 620 | 635 | 1.8 | 2.4 | D2 | 900 | 1200 | MY-5050R-XX |
| P | 395 | 400 | 3.0 | 3.4 | D2 | 200 | 300 | MY-5050R-XX |
Note:
1. Please take Luminous Flux as standard parameter, Luminous Intensity is only for reference.
2.Tolerance of Luminous Intensity is ±15%.

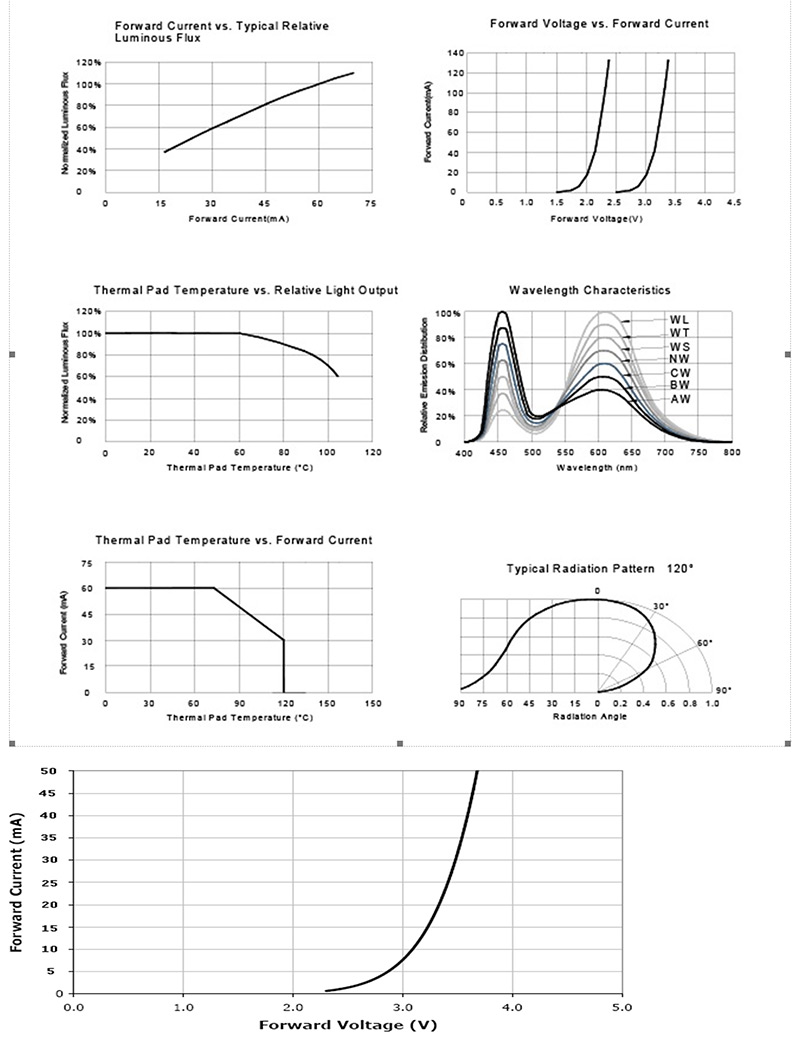

Handing of an SMD LED 5050Should be done only when the Package has been cooled down to below 40℃ or less. This is to Prevent SMD LED 5050 failures due to thermal-mechanical stress during handing.

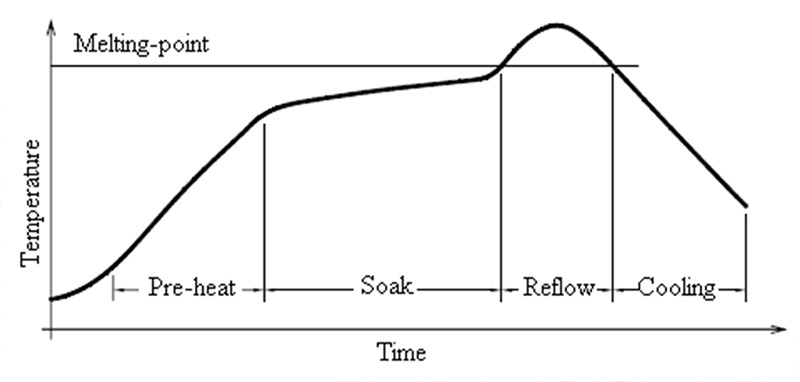

Temperature (top surface of the SMD LED 5050)profile:
1.Use with all SMDs
Solder=Sn63-Pb37
Average ramp-up rate= 4℃/sec.max.
Preheat temperature:100°～150℃
Preheat time =120sec.max.
Ramp-down rate = 6℃/sec.max.
Peak temperature = 230℃max
Time within 5℃ of actual peak temperature = 10 sec.max.
Duration above 183℃ is 60 sec.max.
2.Solder = Lead-Free
Average ramp-up rate = 4℃/sec.max
Preheat temperature:150～200℃
Preheat time =120 sec.max.
Ramp-down rate = 6℃/sec.max.
Peak temperature = 250℃ max.
Time within 5℃ of actual peak temperature =10 sec.max.
Duration above 217℃ is 60 sec.max.
1. Over-current-proof
Customer must apply resistors for protection; otherwise slight voltage shift will cause big current change (Burn out will happen).
2.
2.1 When necessary, cleaning should occur only with isopropyl alcohol (IPA) at room temperature (25ºC) for a duration of no more than one minute. Dry at room temperature for 15 minutes before use.
2.2 The influence of ultrasonic cleaning on the SMD LED 5050 depends on factors such as ultrasonic power and the way the SMD LED 5050 are mounted. Ultrasonic cleaning should be pre-qualified to ensure this will not cause damage to the SMD LED 5050.
3. Storage
3.1 It is recommended to store the products in the following conditions
Humidity: 60% R.H. Max.
Temperature: 5℃~30℃(41℉~86℉): 5℃~30℃(41℉~86℉)
3.2 Shelf life in sealed bag: 12 month at ＜5℃~30℃ and ＜30% R.H. after the package is opened, the products should be used within 24hrs or they should be kept stored at ≦20% R.H. with zip-lock sealed.
4. Baking
It is recommended to bake before soldering when the pack is unsealed after 72hrs. The conditions are as followings:
4.1 80±3℃ x(10~12hrs) and ＜5%RH, taped reel type
4.2 100±3℃ x (1hr~2hrs), bulk type
4.3 130±3℃ x (45min ~1hr), bulk type
