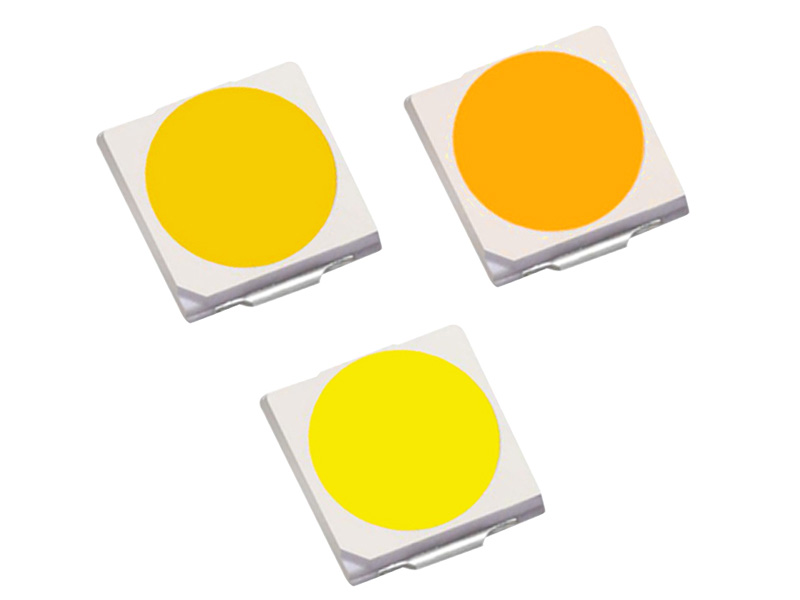

Product Details:
Product Name: 6V 3030 SMD led
Model Number: MY-SMD3030-1WW
Power: 1.5W 1W
Voltage: 3.0-3.2V/6.0-6.4V
Current: 150MA/300MA
Color Rendering Index: Ra>80/RA>90/RA=97
Payment & Shipping Terms:
Minimum Order Quantity: Anti-Static packaging 4Kpcs/reel
Chip brand: Bridgelux/Epistar/San’an
Delivery Time: 5-7 working days
Payment Terms: T/T, Paypal,Western Union, MoneyGram,Xtransfer
3030 smd led Features
Forward Voltage 3V 6V 9V Available
Forward Current 350mA 150mA 100mA
Color Rendering Index: RA80, RA90, RA93, RA95+, RA98
High Light Efficacy: 200LM/W+
CCT Range: 1600-1800K, 1800-2000K, 2000-2200K, 2200-2400K, 3000-10000K
Light Color: Red, Green, Blue, Yellow, UV, IR...
Full Spectrum 380-850nm
| Product Name | Light Color | CCT/Wavelength | Voltage | Current | Lumen | Remark |
| 3030 LED | Gold Yellow | 1800-2000K | 3/6/9V | 350/175/100mA | 120-150LM | CRI80,90 |
| 3030 LED | White | 3000-10000K | 3/6/9V | 350/175/100mA | 120-180LM | CRI80,90,96+ |
| 3030 UV LED | UV | 365-370nm | 3/6/9V | 350/175/100mA | / | Epileds Chip |
| 3030 UV LED | UV | 390-400nm | 3/6/9V | 350/175/100mA | / | Epileds Chip |
| 3030 BLUE LED | Blue | 440-470nm | 3/6/9V | 350/175/100mA | 12-20LM | Epileds Chip |
| 3030 Green LED | Green | 520-530nm | 3/6/9V | 350/175/100mA | 70-100LM | Epileds Chip |
| 3030 Amber LED | Yellow/Amber | 590-610nm | 2/4/6V | 350/175/100mA | 20-25LM | Epileds Chip |
| 3030 Red LED | Red | 620-630nm | 2/4/6V | 350/175/100mA | 30-35LM | Epileds Chip |
| 3030 Far Red | Far Red | 660-665nm | 2/4/6V | 350/175/100mA | 12-15LM | Epileds Chip |
| 3030 IR LED | IR | 730-750nm | 2/4/6V | 350/175/100mA | / | Epileds Chip |
| 3030 IR LED | IR | 850nm | 2/4/6V | 350/175/100mA | / | Epileds Chip |
| 3030 PC Blue | Phosphor Blue | 450-470nm | 3/6/9V | 350/175/100mA | 15-30LM | Customized WD, WP |
| 3030 PC Green | Phosphor Green | 510-530nm | 3/6/9V | 350/175/100mA | 140-200LM | Customized WD, WP |
| 3030 PC Color | Phosphor Amber/Red | 600-630nm | 3/6/9V | 350/175/100mA | 50-60LM | Customized WD, WP |
Notes:

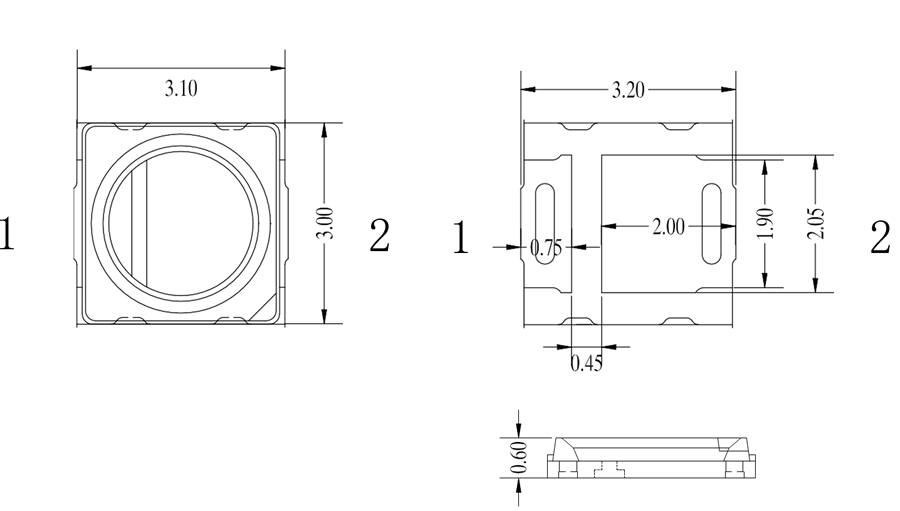

1. All dimensions are in mm 。
2. Tolerance is ±0.2mm unless otherwise noted. ，±0.2 。
| Parameter | Symbol | Rating | Unit |
| Power Dissipation | PD | 1 | W |
| Forward Current | IF | 150 | mA |
| Peak Forward Current | IFP | 200 | mA |
| Operation Temperature Range | Topr | -35 to +60 | ℃ |
| Storage Temperature Range | Tstg | -40 to +70 | ℃ |
| ESD Sensitivity (HBM) | -- | 2000 | V |
| Soldering Temperature | 300±20℃/3～5sec | ||
NOTE：
Pulse width ≤0.1msec
Duty Ratio ≤1/10

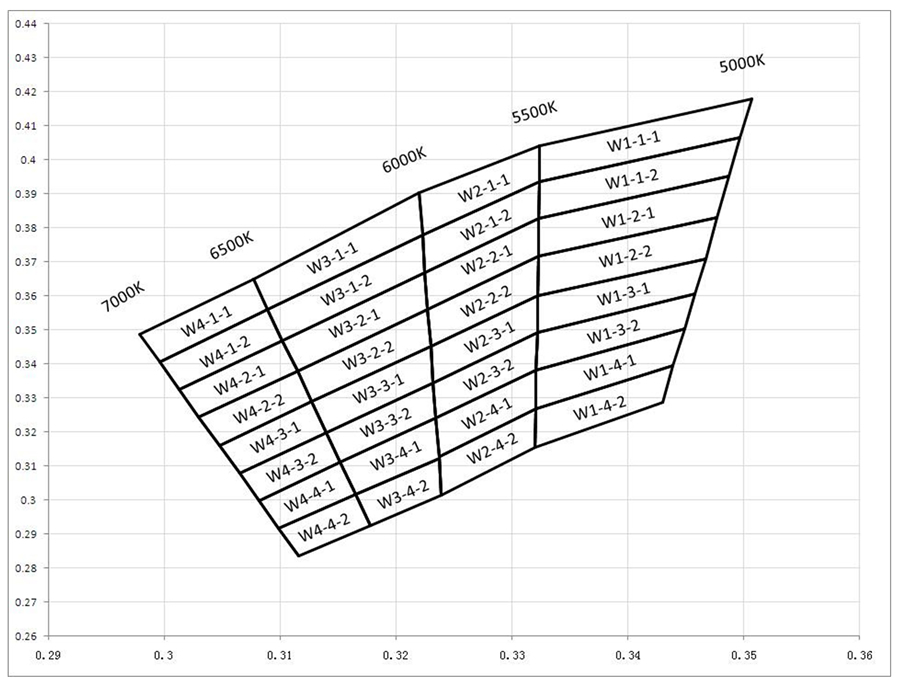

| Parameter | Test Condition | Symbol | Min | Typ | Max | Unit |
| Forward Voltage | IF=150mA | VF | 5.8 | --- | 6.5 | V |
| Reverse Current | VR=-5V | IR | --- | --- | 5 | μA |
| View Angle | IF=150mA | 2θ1/2 | --- | 120 | --- | deg. |
| Luminous flux | IF=150mA | ΦV | 140 | --- | 150 | lm |
| Color Coordinates | IF=150mA | X | --- | 0.32 | --- | |
| Y | --- | 0.33 | --- | |||
| Color Temperature | IF=150mA | CCT | --- | 6000 | --- | K |
| Color Rendering index | IF=150mA | Ra | 80 | --- | --- | --- |

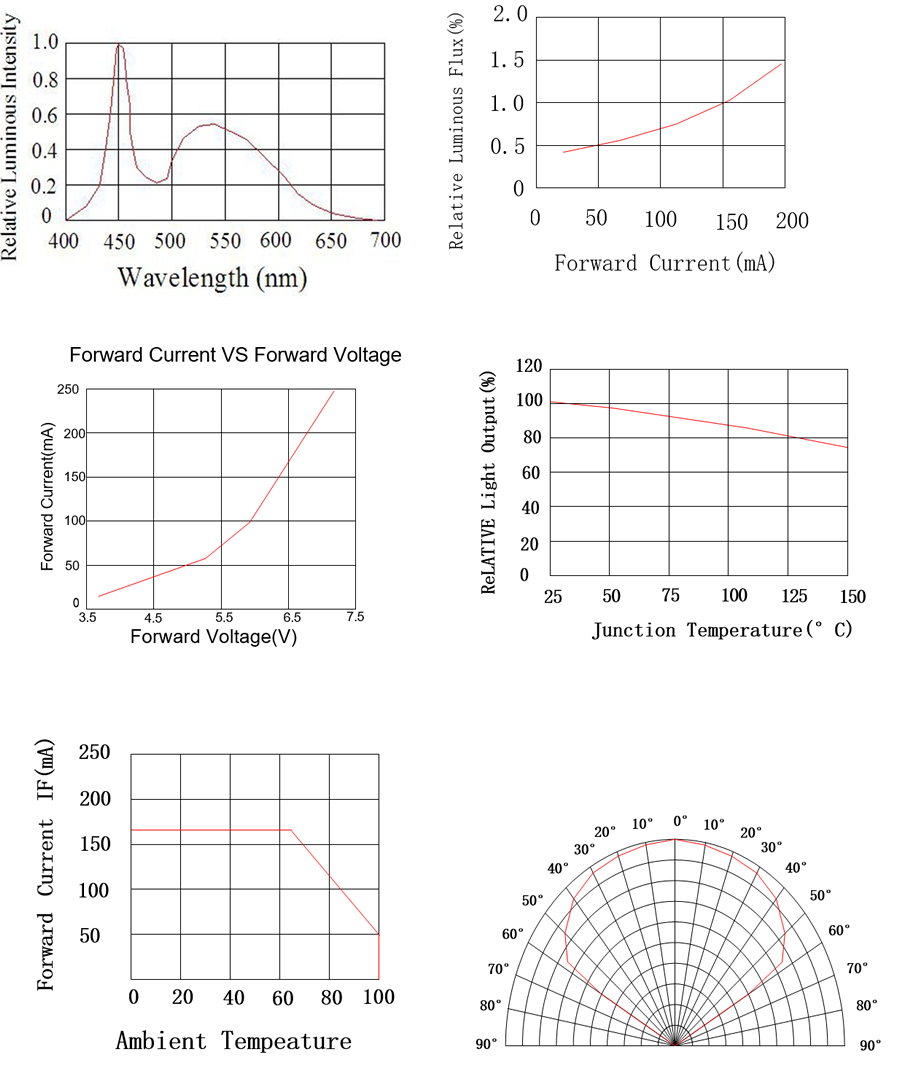

Note: the test tolerance
VF : ±0.05V CCT : ±5% XY : ±0.005 ΦV : ±10%
1. Test Items And Results
| Item | Test conditions | Note | Number of Damaged |
| Reflow | Temp:260℃max T=10 sec | 2 time | 0/30 |
| Thermal Shock | -40~100℃ 30min, 10s, 30min | 100cycles | 0/30 |
| High Temperature High Humidity Storage | Ta=60℃,RH=90% | 300hrs | 0/30 |
| Steady State Operating life | Ta=25℃,IF=150mA | 1000hrs | 0/30 |
| Steady State Operating life of High Humidity Heat | Ta=60℃ RH=90%,IF=150mA | 1000hrs | 0/30 |
| High Temperature Storage | Ta=100℃ | 1000HRS | 0/30 |
| Low Temperature Storage | Ta-=-40℃ | 1000HRS | 0/30 |
2. Criteria for Judging The Damage
| Item | Symbol | Test Conditions | Criteria for Judgment | |
| Min. | Max. | |||
| Forward Voltage | VF | IF =150 mA | --- | Initial Data ×1.1 |
| Luminous Intensity | IV | IF =150 mA | Initial Data × 0.9 | --- |
| Reverse Current | IR | VR = 5V | --- | Initial Data x2.0 |

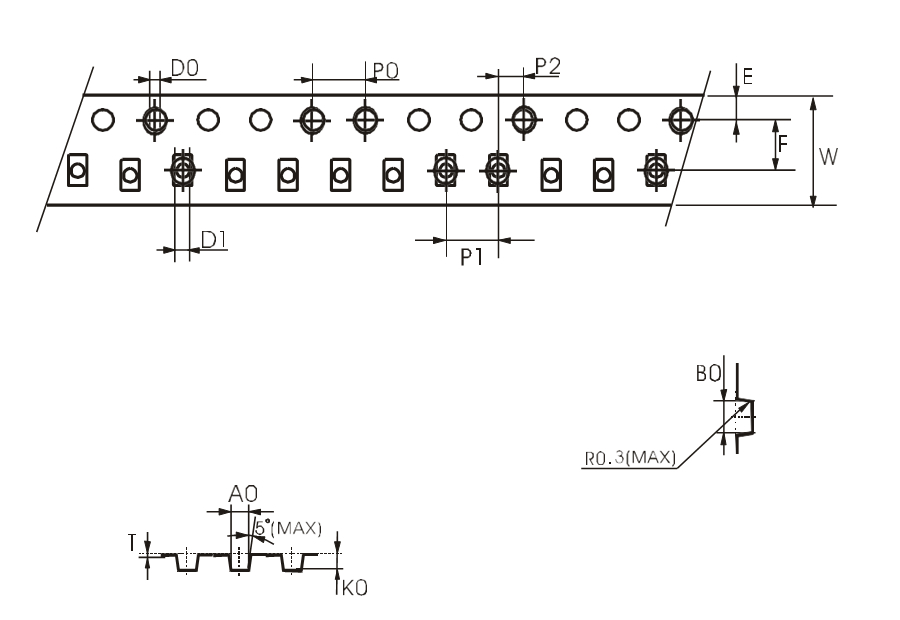

Dimensions of Tape

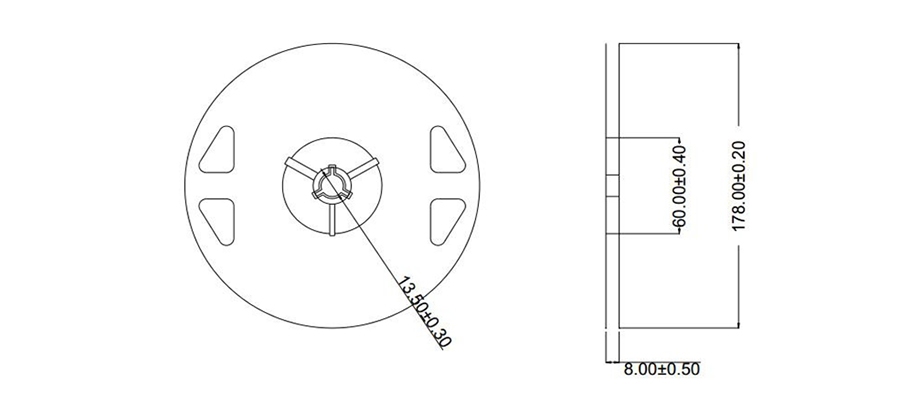

Dimensions of Reel

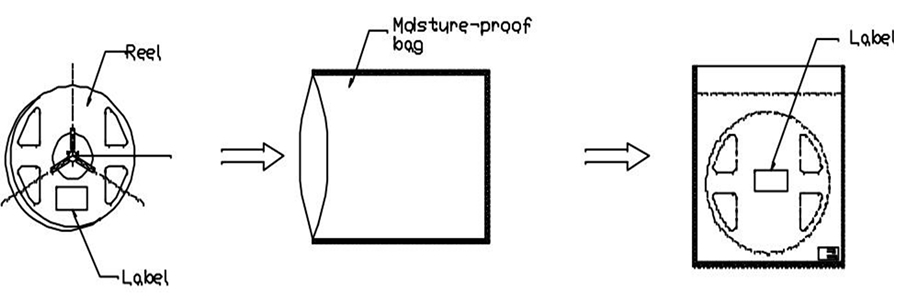

Packaging specifications

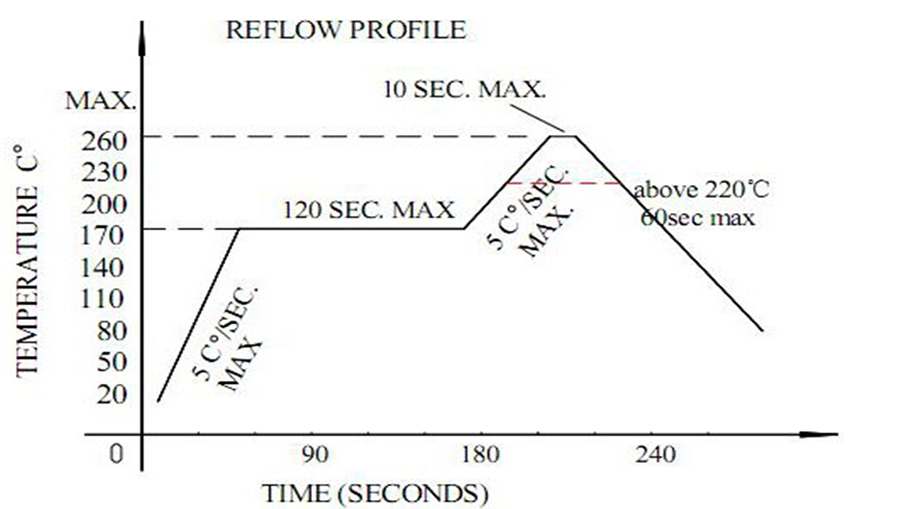

1. Reflow soldering should not be done more than two times
2. When soldering, do not put stress on the 3030 LEDs during heating
Soldering iron
1. When hand soldering, keep the temperature of the iron under 300℃,and at that temperature keep the time under 3 sec.
2. The hand soldering should be done only one time,
Rework
1. Customer must finish rework within 3 sec under 300℃
2. The head of iron can not touch the resi
3. Twin-head type is preferred.
The encapsulated material of the 3030 smd LED is silicone .Therefore the 3030 LED have a soft surface on the top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions should be taken to avoid the strong pressure on the encapsulated part. So when using the picking the picking up nozzle, the pressure on the silicone resin should be proper.
