Product Details:

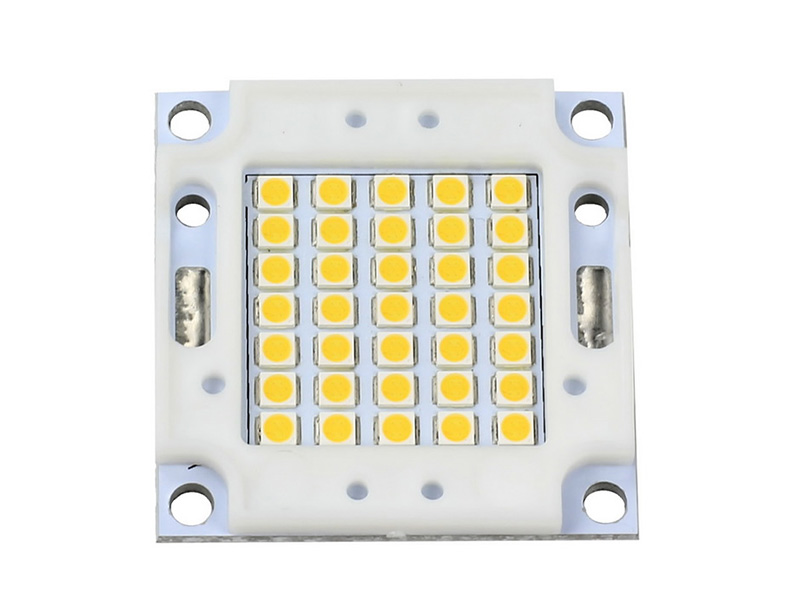

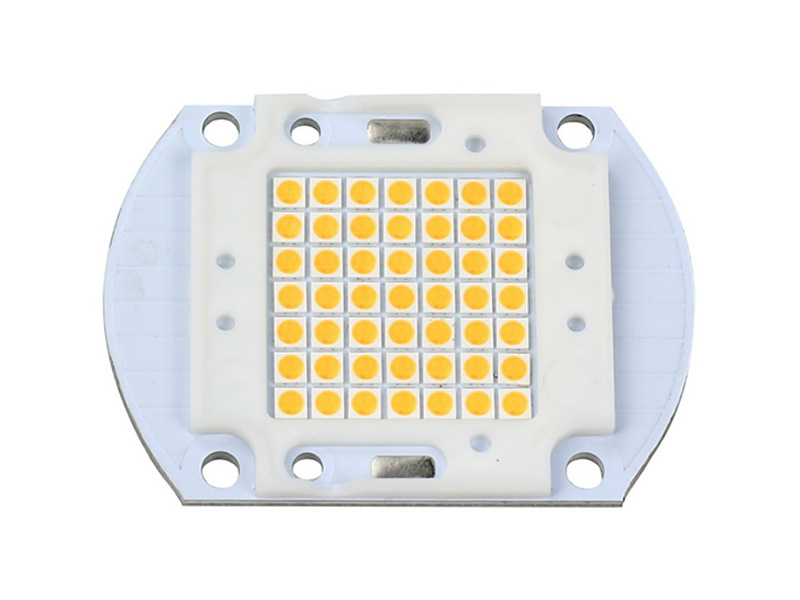

Product Name: 50W SMD led module
Model Number: MY-SMDM-50WW
Power: 50W
Voltage: 32.0-42.0V
Current: 1500MA
Color Rendering Index: Ra>80/RA>90/RA=97
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs/Tray
Chip brand: Bridgelux/Epistar/San’an
Delivery Time: 5-7 working days
Payment Terms: T/T, Paypal,Western Union, MoneyGram,Xtransfer
• 140-160LM/w
• Power: 10w/20w/30w/50w
• CRI: 80
• View angle:120
• DC32-42V
• 1200mA
• 3030 SMD LED
• Lighting Color :Wram White,Pure White,Blue
• Warranty :3-5years
• Chip source: Bridgelux & San’an
• High Luminous Efficacy
• Super strong Stability
• Make in China
• Long lifespan
• Instant start,no flashing
• Low heating generation to ruduce electricity comsupution
1. High Power, high lumen, high quality
2. Save 80% more energy compared with traditional lighting fixtures
3. Easy to install and use, secure and reliable
4. No UV or RF interference, No mercury or lead
5.Light body is made of good quality aluminum alloy with painting on surface, exiguity and unique design, excellent heat dissipation.
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs
8. High brightness, low consumption, green for environment
9. PMAM lens, 120°for your choice
10.Light body with tempered glass and water resistant silicone seal,internal thermal silicon potting,and therefore has a double waterproof lamps

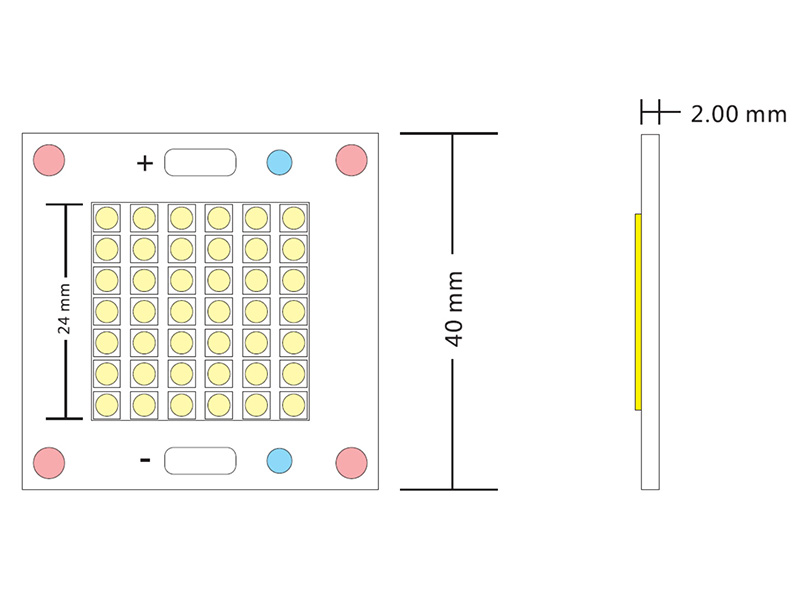

| COB Size | 40x40mm | Colors | Warm/ natural/ cool white |
| Emitting Area | 24x24m | Color temperature | 3000K, 4000K, 6000K |
| Weight | 20g | Brightness | 1200-8000LM |
| Working Votalge | 30-42V(10/20/30W/50w) | RA (CRI) | 80 |
| Max Current | 300mA(10W), 600mA(20W), 900mA(30W), 1200mA(50W), | Working temperature | -20 to 70℃ |
| Watt | 10W~50W | COB Mode | SMD 3030 |
What is LED COB?
COB (Chips on Board) is a new technology of LED packaging of LED light engine. Multi LED chips are packaged together as one light module. When it lights up, it looks like a lighting panel.
How COB LED light source works?
In COB lighting, single LED chips are placed directly on a circuit board (or substrate) which has thermal properties to disperse heat. Heat dissipation is a very important aspect of LED lighting since it can have a major impact on the life expectancy of the luminary. Therefore, COB lighting can have a higher LED chip density and achieve higher light level while maintaining or improving life expectancy.
Advantage of LED COB:
COB light is a more efficient form of LED lighting for general or automotive lighting applications because:
- light has a more uniform appearance
- better life expectancy
- achieve higher light level over a large area
- COB LED is more stable and reliable than standard LED package.
